NordicTrack® - S22I STUDIO CYCLE - NTEX021215

S22I STUDIO CYCLE - NTEX021215 -

Brand: NordicTrack®
Category: Stationary Bicycles - Upright Bikes - Commercial
Model Name: S22I STUDIO CYCLE
Model Number: NTEX021215

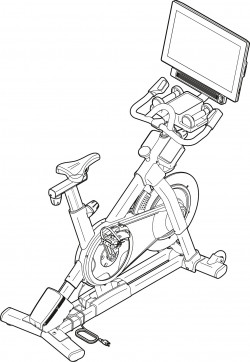

Exploded Diagrams

Parts that are not yet classified will display after matching classified parts if any attributes are selected.

Filter List:



Catalog Number

Part Name

Special Notes

6000441 - Magnet - Product Image

6000441

Magnet

$1.94 / each
6057447 - Nut, Locking - Product Image

6057447

Nut, Locking

$2.77 / each
6035838 - Washer - Product Image

6035838

Washer

$2.11 / each
6057227 - Screw - Product Image

6057227

Screw

$1.11 / each
6023396 - Screw - Product Image

6023396

Screw

$2.62 / each
6000042 - Nut, Nylock Hex - Product Image

6000042

Nut, Nylock Hex

$1.75 / each
6075108 - Screw - Product Image

6075108

Screw

$5.06 / each
6002442 - Tinnerman Clip - Product Image

6002442

Tinnerman Clip

$1.54 / each
6044268 - Foot, Leveler - Product Image

6044268

Foot, Leveler

$10.39 / each
6031763 - Screw - Product Image

6031763

Screw

$6.98 / each
6043837 - Disc, Resistance - Product Image

6043837

Disc, Resistance

$2.27 / each
6074702 - Wire Harness - Product Image

6074702

Wire Harness

$11.73 / each
6000326 - Cable Tie - Product Image

6000326

Cable Tie

$1.14 / each
6101297 - Pedal, Left - Product Image

6101297

Pedal, Left

$51.45 / each
6101293 - Pedal, Right - Product Image

6101293

Pedal, Right

$51.45 / each
6057255 - Cable Tie, Mounting - Product Image

6057255

Cable Tie, Mounting

$1.46 / each


6104831

RESISTANCE MOTOR

$84.31 / each
6072904 - Bushing, Incline Motor - Product Image

6072904

Bushing, Incline Motor

$5.06 / each
6074142 - End Cap, Stabilizer, Rear - Product Image

6074142

End Cap, Stabilizer, Rear

$13.98 / each
6005387 - Mat, Floor - Product Image

6005387

No Longer Available Mat, Floor

6076783 - Locknut - Product Image

6076783

Locknut

$2.54 / each
6027395 - Screw - Product Image

6027395

Screw

$4.60 / each
6088017 - Wheel, Transport - Product Image

6088017

Wheel, Transport

$20.37 / each
6000942 - Clamp, Cable, Long - Product Image

6000942

Clamp, Cable, Long

$1.64 / each
6006497 - Nylock Hex Nut - Product Image

6006497

Nylock Hex Nut

$2.06 / each


6106466

CONTROLLER

$151.97 / each

Extended Back Order: it may be several months before we receive this part.
6012095 - Decal, Warning - Product Image

6012095

Decal, Warning

$3.24 / each
6036334 - Screw - Product Image

6036334

Screw

$2.11 / each


6106454

Wire, Lower

$36.02 / each


6104804

REED SWITCH/WIRE

$18.92 / each


6106390

Screw

$4.09 / each
6042025 - Screw - Product Image

6042025

Screw

$3.63 / each
6044851 - Screw, Outlet Plate - Product Image

6044851

Screw, Outlet Plate

$1.76 / each


6106376

ADJUSTMENT ASSEMBLY

$25.72 / each


6101299

Belt, Drive

$44.59 / each


6103024

INNER PIVOT DISC

$4.09 / each


6107230

No Longer Available LEFT CRANK ARM



6106361

M6 SHOULDER SCREW

$6.14 / each


6103026

OUTER PIVOT DISC

$6.14 / each


6106421

POST KNOB

$21.62 / each


6106391

SADDLE NUT

$9.20 / each
6088002 - Screw - Product Image

6088002

Screw

$1.92 / each


6106470

16.5 WIRE HRNS W/PWR JCK

$34.56 / each
6106402 - CARRIAGE - Product Image

6106402

CARRIAGE

$86.80 / each


6106400

FRAME BEARING, LT/RT SET

$118.62 / each


6057036

Screw

$1.20 / each


6044012

Screw, Self Tap

$1.81 / each


6103972

#8 X 3/8"" SCREW

$1.17 / each


6106464

15MM-17MM COMBO WRENCH

$11.06 / each


6108182

34 WIRE HRNS, LIFT MTR

$34.02 / each


6104658

5MM ALLEN WRENCH

$4.09 / each


6104659

6MM ALLEN WRENCH

$6.14 / each


6106389

ACCESSORY TRAY

$38.25 / each


6106429

ADJUSTMENT BLOCK

$13.51 / each


6106883

BASE

$204.71 / each


6106425

BRACKET MOUNT

$34.30 / each


6107896

BRAKE KNOB

$13.51 / each


6107892

Brake Knob Cap

$6.14 / each

Extended Back Order: it may be several months before we receive this part.


6107905

BRAKE SHAFT

$48.02 / each


6106435

BRAKE SHOE

$19.53 / each


6106432

BRAKE SPRING

$6.14 / each


6061388

BUMPER

$5.06 / each


6083179

CARRIAGE COVER

$8.24 / each


6106422

CARRIAGE KNOB

$21.62 / each


6103023

CENTER PIVOT DISC

$9.20 / each


6057522

Clamp

$4.09 / each


6107935

CONSOLE

$675.47 / each


6106472

CONSOLE BRACKET

$45.72 / each


6107944

CONSOLE FAN

$223.58 / each


6107037

CONSOLE SUPPORT

$85.76 / each


6106457

CONTROL WIRE

$22.37 / each


6106467

CONTROLLER COVER

$53.81 / each


6107206

CRANK/RIGHT CRANK ARM

$204.71 / each


6060918

Decal, General Warning

$14.07 / each


6084501

E-CLIP

$1.18 / each


6106474

EXTENSION WIRE

$23.43 / each


6106373

FLYWHEEL ASSEMBLY

$338.79 / each


6106359

FRONT STABILIZER

$90.90 / each


6106368

HAND WEIGHT

$165.04 / each


6106465

HAND WEIGHT TRAY

$25.21 / each


6106453

HANDLEBAR

$198.44 / each


6106374

HANDLEBAR CAP

$4.09 / each


6106448

HANDLEBAR POST

$148.28 / each


6106388

HANDLEBAR POST CAP

$4.09 / each


6106463

HARDWARE KIT, NOTE:

$8.50 / each


6101385

HEART RATE ARM BAND

$204.60 / each


6107718

INCLINE MOTOR

$263.78 / each


6106414

INCLINE MOTOR SPACER

$9.20 / each


6106401

LARGE LEG BUSHING

$20.33 / each


6107847

LEFT BASE COVER

$23.64 / each


6106408

LEFT CONTROL

$42.87 / each


6106386

LEFT DISC

$25.72 / each


6106406

LEFT GRIP

$19.53 / each


6106384

LEFT INCLINE MOTOR COVER

$27.44 / each


6106418

LEFT MAGNET BRACKET CVR

$16.21 / each


6106393

LEFT SADDLE POST SLEEVE

$16.21 / each


6106381

LEFT SHIELD

$68.61 / each


6106444

LEG COVER LEFT

$13.51 / each


6106443

LEG COVER RIGHT

$13.51 / each


6106399

LEG SLEEVE

$13.51 / each


6106403

LEG SPACER

$20.33 / each


6102851

LINK ARM

$13.51 / each


6108527

LITPAC, NOTE:

$91.43 / each


6106430

LOWER BRAKE BUSHING

$4.09 / each


6106441

LOWER LEG LEFT

$34.30 / each


6106442

LOWER LEG RIGHT

$34.30 / each


6106396

LOWER SADDLE CLAMP

$34.30 / each


6106395

LT HANDLEBAR POST SLEEVE

$20.33 / each


6059898

M10 X 20MM FLAT HEAD SCRW

$4.54 / each


6107680

M10 X 38MM WASHER

$6.53 / each


6107140

M12 CRANK SCREW

$7.52 / each


6107687

M12 X 25MM CAP SCREW

$6.21 / each


6106152

M3 X 6MM SCREW

$2.04 / each


6096932

M4 X 10MM SCREW,WTR BTL

$4.09 / each


6106433

M4 X 5MM SCREW

$1.17 / each


6043939

M4 X 8MM SCREW

$1.90 / each


6106428

M5 X 8MM SCREW

$4.09 / each


6102673

M6 X 13MM WASHER

$2.04 / each


6107887

M6 X 15MM SCREW

$1.67 / each


6106419

M6 X 25MM SCREW,W/PATCH

$5.49 / each


6106312

M8 X 12MM SCREW

$10.62 / each


6106365

M8 X 32MM SCREW

$9.20 / each


6103017

M8 X 45MM BOLT

$4.09 / each


6106424

M8 X 85MM BOLT

$6.14 / each


6106416

MAGNET BRACKET

$149.99 / each


6086151

OPTIONAL CHEST PULSE ACC

$106.98 / each


6107223

PIVOT AXEL

$33.10 / each


6107263

PIVOT BUSHING

$29.99 / each


6106377

POST CLAMP

$76.87 / each


6106413

POST KNOB CAP

$13.51 / each


6107849

POWER ADAPTER

$179.12 / each


6106370

PULLEY

$86.80 / each


6106360

REAR STABILIZER

$77.17 / each


6107287

RIGHT BASE COVER

$23.64 / each


6106407

RIGHT CONTROL

$42.87 / each


6106382

RIGHT DISC

$20.33 / each


6106405

RIGHT GRIP

$19.53 / each


6106383

RIGHT INCLINE MOTOR COVER

$27.44 / each


6106417

RIGHT MAGNET BRACKET CVR

$16.21 / each


6106392

RIGHT SADDLE POST SLEEVE

$16.21 / each


6106379

RIGHT SHIELD

$68.61 / each


6106434

ROLL PIN

$1.38 / each


6106394

RT HANDLEBAR POST SLEEVE

$20.33 / each


6106398

SADDLE

$80.60 / each


6106367

SADDLE POST

$203.99 / each


6024706

Screw

$5.59 / each


6094027

Screw

$5.17 / each


6106409

SHAFT COVER

$20.33 / each


6106410

SHAFT COVER SLEEVE

$16.21 / each


6106380

SHIELD COVER

$16.21 / each


6106436

SHOE PIN

$9.20 / each


6106404

SMALL LEG BUSHING

$16.21 / each


6106431

SPRING STOP

$4.09 / each


6101473

THRUST WASHER

$2.72 / each


6107807

UPPER BRAKE BUSHING

$4.09 / each


6106385

UPPER INCLINE MOTOR COVER

$20.33 / each


6107525

UPPER LEG

$92.55 / each


6107909

UPPER LEG AXLE

$22.90 / each


6106397

UPPER SADDLE CLAMP

$34.30 / each


6106473

UPPER WIRE

$21.17 / each


6103025

UPPER/LOWER PIVOT DISC

$13.51 / each


6108829

USER'S MANUAL

$19.44 / each


6101178

Washer, Thrust

$4.09 / each


6106461

Wire Harness

$18.10 / each


6103925

WIRE PROTECTOR

$3.28 / each
