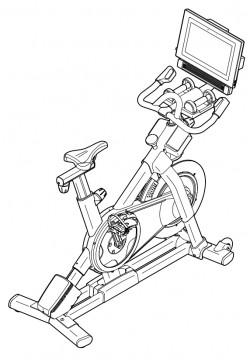

NordicTrack® - S 15i - NTEVEX16720.0 | Fitness and Exercise Equipment Repair Parts

Catalog Number	Part Name	Special Notes
6000441	Magnet		$1.94 / each
6057447	Nut, Locking		$2.77 / each
6035838	Washer		$2.11 / each
6101295	Arm, Crank, Left		$168.26 / each Extended Back Order: it may be several months before we receive this part.
6023396	Screw		$2.62 / each
6075108	Screw		$5.06 / each
6106369	Screw, Crank		$6.14 / each
6002442	Tinnerman Clip		$1.54 / each
6106452	CONTROLLER		$153.34 / each
6044268	Foot, Leveler		$10.39 / each
6101293	Pedal, Right		$51.45 / each
6043837	Disc, Resistance		$2.27 / each
6101297	Pedal, Left		$51.45 / each
6104831	RESISTANCE MOTOR		$84.31 / each
6057255	Cable Tie, Mounting		$1.46 / each
6072904	Bushing, Incline Motor		$5.06 / each
6104804	REED SWITCH/WIRE		$18.92 / each
6074142	End Cap, Stabilizer, Rear		$13.98 / each
6076783	Locknut		$2.54 / each
6101299	Belt, Drive		$44.59 / each Extended Back Order: it may be several months before we receive this part.
6103024	INNER PIVOT DISC		$4.09 / each
6006497	Nylock Hex Nut		$2.06 / each
6088017	Wheel, Transport		$20.37 / each
6044851	Screw, Outlet Plate		$1.76 / each
6106454	Wire, Lower		$36.02 / each
6106400	FRAME BEARING, LT/RT SET		$99.19 / each
6106391	SADDLE NUT		$9.20 / each
6106423	M10 CLAMP SCREW		$6.14 / each
6106424	M8 X 85MM BOLT		$6.14 / each
6101246	Nut		$1.75 / each
6103026	OUTER PIVOT DISC		$6.14 / each
6106390	Screw		$4.09 / each
6042025	Screw		$3.63 / each
6106376	ADJUSTMENT ASSEMBLY		$25.72 / each
6106429	ADJUSTMENT BLOCK		$13.51 / each
6106457	CONTROL WIRE		$22.37 / each
6106456	EXTNSN WIRE,RED CONNECTOR		$25.21 / each
6102851	LINK ARM		$13.51 / each
6106361	M6 SHOULDER SCREW		$6.14 / each
6106419	M6 X 25MM SCREW,W/PATCH		$5.49 / each
6106407	RIGHT CONTROL		$42.87 / each
6024706	Screw		$5.59 / each
6057036	Screw		$1.20 / each
6028903	Screw		$1.17 / each
6106455	UPPER WIRE,YLW CONNECTOR		$20.50 / each
6106402	CARRIAGE		$86.80 / each
6106396	LOWER SADDLE CLAMP		$34.30 / each
6106421	POST KNOB		$19.08 / each
6085989	Screw		$3.82 / each
6044012	Screw, Self Tap		$1.81 / each
6106397	UPPER SADDLE CLAMP		$34.30 / each
6103972	#8 X 3/8"" SCREW		$1.17 / each
6046139	10" BLUE WIRE, 2F		$12.88 / each
6106460	31 WIRE HARNESS		$20.54 / each
6106389	ACCESSORY TRAY		$38.25 / each
6106358	BASE		$111.73 / each
6106425	BRACKET MOUNT		$34.30 / each
6106435	BRAKE SHOE		$19.53 / each
6106432	BRAKE SPRING		$6.14 / each
6061388	BUMPER		$5.06 / each
6083179	CARRIAGE COVER		$8.24 / each
6106422	CARRIAGE KNOB		$21.62 / each
6103023	CENTER PIVOT DISC		$9.20 / each
6057522	Clamp		$4.09 / each
6107933	CONSOLE		$759.57 / each
6107086	CONSOLE BRACKET		$42.87 / each
6107943	CONSOLE FAN		$182.79 / each
6107037	CONSOLE SUPPORT		$85.76 / each
6106411	CONTROLLER COVER,W/SCREWS		$29.91 / each
6106371	CRANK/RIGHT CRANK ARM		$217.42 / each
6084501	E-CLIP		$1.18 / each
6106373	FLYWHEEL ASSEMBLY		$338.79 / each
6106359	FRONT STABILIZER		$90.90 / each
6107126	HAND WEIGHT		$120.41 / each
6106387	HAND WEIGHT TRAY		$48.02 / each
6106453	HANDLEBAR		$165.94 / each
6106374	HANDLEBAR CAP		$4.09 / each
6106448	HANDLEBAR POST		$124.00 / each
6106388	HANDLEBAR POST CAP		$4.09 / each
6106414	INCLINE MOTOR SPACER		$9.20 / each
6106401	LARGE LEG BUSHING		$20.33 / each
6106426	LEFT BASE COVER		$19.53 / each
6106408	LEFT CONTROL		$42.87 / each
6106386	LEFT DISC		$25.72 / each
6106406	LEFT GRIP		$19.53 / each
6106384	LEFT INCLINE MOTOR COVER		$27.44 / each
6106418	LEFT MAGNET BRACKET CVR		$16.21 / each
6106393	LEFT SADDLE POST SLEEVE		$16.21 / each
6107319	LEFT SHIELD		$71.18 / each
6106444	LEG COVER LEFT		$13.51 / each
6106443	LEG COVER RIGHT		$13.51 / each
6106399	LEG SLEEVE		$13.51 / each
6106403	LEG SPACER		$20.33 / each
6106430	LOWER BRAKE BUSHING		$4.09 / each
6106441	LOWER LEG LEFT		$34.30 / each
6106442	LOWER LEG RIGHT		$34.30 / each
6106395	LT HANDLEBAR POST SLEEVE		$20.33 / each
6059898	M10 X 20MM FLAT HEAD SCRW		$4.54 / each
6076441	M3 X 20MM SCREW		$7.19 / each
6106152	M3 X 6MM SCREW		$2.04 / each
6096932	M4 X 10MM SCREW,WTR BTL		$4.37 / each
6106433	M4 X 5MM SCREW		$1.17 / each
6043939	M4 X 8MM SCREW		$1.90 / each
6106428	M5 X 8MM SCREW		$4.09 / each
6102673	M6 X 13MM WASHER		$2.04 / each
6106312	M8 X 12MM SCREW		$10.62 / each
6106365	M8 X 32MM SCREW		$9.20 / each
6103017	M8 X 45MM BOLT		$4.09 / each
6106416	MAGNET BRACKET		$125.42 / each
6106372	PIVOT AXLE		$25.72 / each
6106375	PIVOT BUSHING		$20.33 / each
6106362	PIVOT CLAMP		$48.02 / each
6106377	POST CLAMP		$76.87 / each
6106413	POST KNOB CAP		$13.51 / each
6106370	PULLEY		$86.80 / each
6106360	REAR STABILIZER		$77.17 / each
6045175	RECEPTICAL		$12.53 / each
6045171	RESET/OFF CIRCUIT BREAKER		$13.12 / each
6106378	RIGHT BASE COVER		$19.53 / each
6106382	RIGHT DISC		$20.33 / each
6106405	RIGHT GRIP		$19.53 / each
6106383	RIGHT INCLINE MOTOR COVER		$27.44 / each
6106417	RIGHT MAGNET BRACKET CVR		$16.21 / each
6106392	RIGHT SADDLE POST SLEEVE		$16.21 / each
6107302	RIGHT SHIELD		$68.61 / each
6106434	ROLL PIN		$1.38 / each
6106394	RT HANDLEBAR POST SLEEVE		$20.33 / each
6106398	SADDLE		$80.60 / each
6106367	SADDLE POST		$170.57 / each
6106409	SHAFT COVER		$20.33 / each
6106410	SHAFT COVER SLEEVE		$16.21 / each
6106380	SHIELD COVER		$16.21 / each
6106436	SHOE PIN		$9.20 / each
6106404	SMALL LEG BUSHING		$16.21 / each
6106431	SPRING STOP		$4.09 / each
6101473	THRUST WASHER		$2.72 / each
6106385	UPPER INCLINE MOTOR COVER		$20.33 / each
6106439	UPPER LEG LEFT		$51.45 / each
6106440	UPPER LEG RIGHT		$51.45 / each
6103025	UPPER/LOWER PIVOT DISC		$13.51 / each
6101178	Washer, Thrust		$4.09 / each
6106461	Wire Harness		$18.10 / each
6103925	WIRE PROTECTOR		$3.28 / each
6004731	WIRE,JMPR,006",G/Y,F/RF00705HB		$4.57 / each
6002999	WIRE,JMPR,010",White,F/F 130424E		$5.70 / each
