BH Fitness - LK700X CORE - SN 7240LK700XCORExxxx and newer

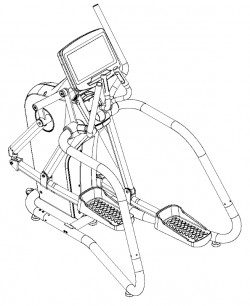

LK700X CORE - SN 7240LK700XCORExxxx and newer -

Brand: BH Fitness
Category: Ellipticals - Ellipticals - Commercial
Model Name: LK700X CORE
Model Number: SN 7240LK700XCORExxxx and newer

Exploded Diagrams

	Catalog Number	Part Name	Special Notes
	62008053	Bearing, Sealed		$15.84 / each
	62010463	Bearing		$11.12 / each
	62011743	Cushion plate		$48.16 / each
	62035219	Generator/Brake		$557.50 / each
	62006161	Wheel, Transport		$5.40 / each
	62025014	Bearing, Sealed 30mm ID		$36.96 / each
	62035251	Right swing arm rear cover		$8.28 / each
	62015862	Tensioner, Belt		$61.32 / each
	62035783	/Pedal post connection plate set		$82.98 / each
	62035220	Control board		$381.05 / each
	62035275	support bushing		$8.28 / each
	62037123	Crank arm		$66.78 / Each
	62035243	hand pulse pad		$15.28 / each
	62035266	internal power cable-1500mm		$14.72 / each
	62017856	Left swing arm front cover		$8.28 / each
	62035217	Nut		$1.35 / each
	62035165	No Longer Available Power Cord
	62017858	Right swing arm front cover		$8.28 / each
	62035273	Separate bushing of bearing		$5.49 / each
	62035274	support bushing of beaing		$5.49 / each
	62035268	Bearing		$37.45 / each
	62037122	Bearing		$23.59 / each
	62035211	Belt		$41.09 / each
	62037135	Belt wheel set		$102.95 / Each
	62035228	Chain cover (L)		$127.30 / each
	62035271	Joint bearing		$89.94 / each
	62035270	Nut		$8.28 / each
	62035194	Pedal post connection		$138.50 / each
	62035245	Screw		$1.35 / each
	62035177	Screw		$1.35 / each
	62035787	Snap ring		$8.80 / each
	62035197	Snap ring?35		$0.63 / each
	62037144	Adjustable foot cushion Adjustable foot cushion		$6.03 / each
	62037138	Allen head sink screw		$4.05 / Each
	62037143	Aluminum washer		$6.75 / Each
	62035267	Antenna cable-1500mm		$49.21 / each
	62035231	Battery		$82.62 / each
	62035234	battery wire-800mm		$13.44 / each
	62035284	Bearing		$22.48 / each
	62037127	Bearing		$4.68 / each
	62037128	Bearing post		$1.80 / Each
	62035815	Belt wheel		$59.43 / each
	62035214	Belt wheel flange plate		$15.92 / each
	62035173	bottle holder		$24.64 / each
	62037141	Bushing of beltwheel		$5.40 / Each
	62035269	Bushing of joint bearing		$8.28 / each
	62037140	Bushing, Support		$8.10 / Each
	62036427	Chain cover (R)		$125.10 / each
	62035221	Coil cable		$7.11 / each
	62035236	Computer post		$42.00 / each
	62035846	Computer post cover		$21.07 / each
	62035235	Computer post set		$49.21 / each
	62037136	Crank axel welding		$61.39 / Each
	62037124	Disk		$9.68 / Each
	62035840	flat washer		$5.49 / each
	62035198	Flat washer		$9.92 / each
	62035222	Generator cable		$8.48 / each
	62035244	hand pulse wire-800mm		$15.28 / each
	62035238	Handle left connection tube		$93.12 / each
	62035239	Handle right connection tube		$93.12 / each
	62037142	Hex nutM35		$6.75 / Each
	62035257	Left connection tube		$70.80 / each
	62035256	Left connection tube set		$76.44 / each
	62035242	left fixed handle bar		$24.50 / each
	62035247	Left fixed handle bar		$24.50 / each
	62035241	Left fixed handle bar set		$51.17 / each
	62035246	Left fixed handle bar set		$50.33 / each
	62035254	Left pedal		$76.26 / each
	62037137	Left Pedal arm welding		$120.05 / Each
	62037131	Left pedal post		$202.00 / Each
	62037132	Left pedal post welding		$101.10 / Each
	62035856	Left swing arm rear cover		$7.20 / each
	62035261	Left swing post set		$104.70 / each
	62037134	Left, Lower swing post		$112.55 / Each
	62037133	Left, Lower swing post set		$175.40 / Each
	62035199	lower cable-1500mm		$18.32 / each
	62037121	No Longer Available Main frame
	62037120	No Longer Available Main frame set
	62037139	Right ,Pedal arm welding		$120.05 / Each
	62035259	Right connection tube		$70.80 / each
	62035258	Right connection tube set		$76.44 / each
	62035255	Right pedal		$76.26 / each
	62037126	Right Pedal post		$107.82 / Each
	62035262	Right swing post set		$104.70 / each
	62037130	Right, Lower swing arm jointing		$120.05 / Each
	62037129	Right, Lower swing arm set		$242.15 / Each
	62037125	Right, Pedal Post Set		$201.85 / Each
	62035263	RJ45 internet cable-1500mm		$33.18 / each
	62035843	Rubber ring		$1.35 / each
	62035200	Screw		$1.53 / each
	62035210	Screw		$2.07 / each
	62035216	Screw		$1.35 / each
	62035225	Screw		$1.35 / each
	62035757	Screw		$3.42 / each
	62035760	Screw		$1.35 / each
	62035819	Screw		$0.99 / each
	62026642	Screw		$1.35 / each
	62035176	Screw, Hex		$0.81 / each
	62035172	Snap ring?30		$1.35 / each
	62035232	strip		$6.84 / each
	62035227	Tension bolt		$9.52 / each
	62035226	Tension spacer		$2.16 / each
	62035281	Washer		$1.35 / each
	62035283	Washer		$1.35 / each
	62026625	Washer		$1.35 / each
	62035185	Washer		$1.35 / each
	62035280	Washer, Flat		$1.35 / each
	62035182	Washer, Spring		$1.35 / each
	62035174	Washer, Wave		$1.35 / each
